- RS-artikelnummer:
- 185-4718
- Tillverkare / varumärke:
- RS PRO
- RS-artikelnummer:
- 185-4718
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

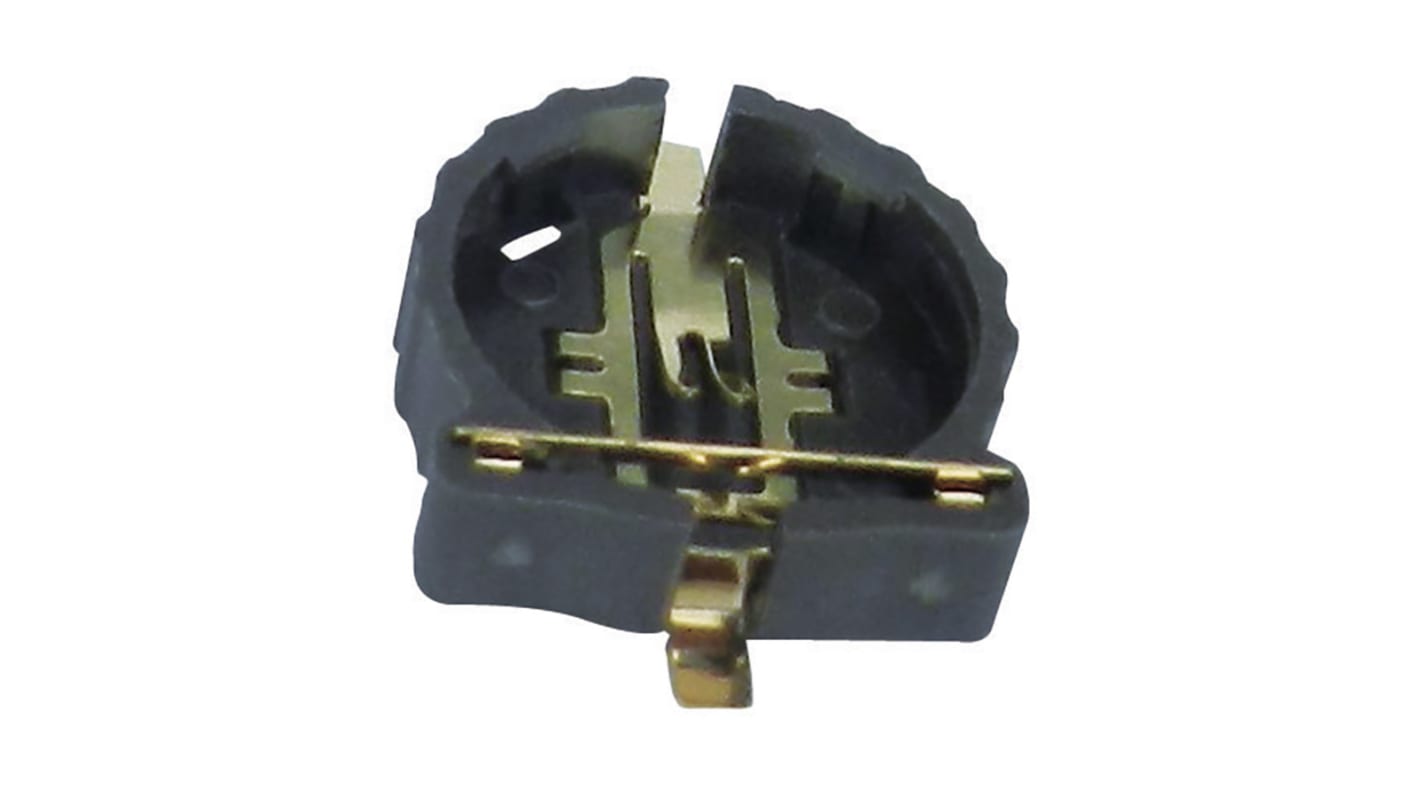

RS PRO Battery Holder
The RS PRO battery holder is suitable for a CR1220 battery and it has dimensions of 19.45 x 14.6 x 4.2mm.
Features and Benefits
Body material: PPS
Operating temperature ranges between -55°C and 105°C
Contact: Phosphor bronze 0.2mm thick gold-plated over nickel
Insulation resistance: 1000megaohms minimum
Contact resistance: 30milliohms maximum
Dieletcric voltage: 500V one sec level
Operating temperature ranges between -55°C and 105°C
Contact: Phosphor bronze 0.2mm thick gold-plated over nickel
Insulation resistance: 1000megaohms minimum
Contact resistance: 30milliohms maximum
Dieletcric voltage: 500V one sec level
Certifications
UL 94V0 approved
Specifikationer
Attribute | Value |
---|---|
Type | Battery Holder |
Dimensions | 19.45 x 14.6 x 4.2mm |
Body Material | PPS |
