Produktdetaljer

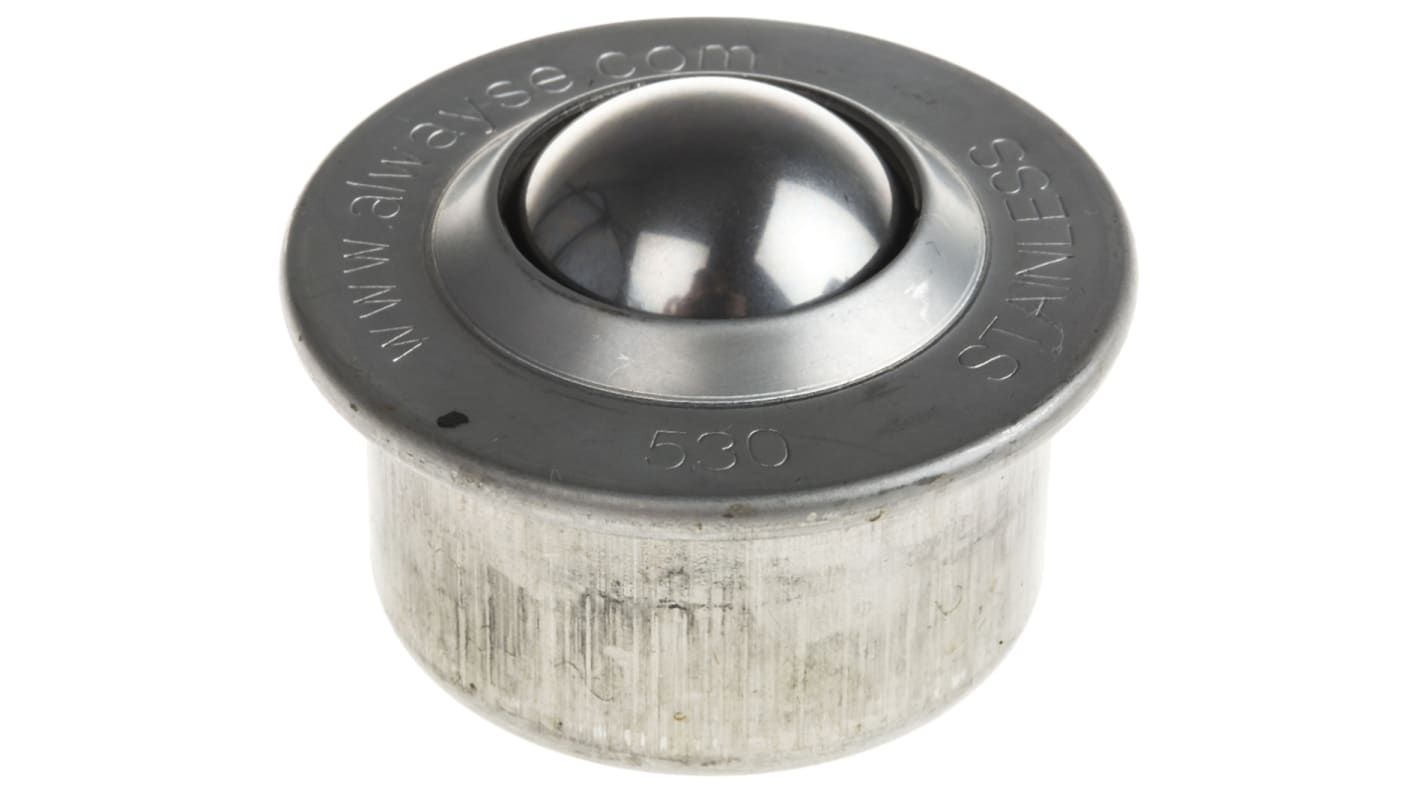

ALWAYSE Euro Ball Transfer Unit
The ALWAYSE circular flange mount euro ball transfer unit is a pre-lubricated device with a maximum load capacity is 175kg. This unit is used to move or transfer loads in all direction with a maximum speed of 1m/s.
Fixing clip
A fixing clip helps to fix either the top side of a ball deck or the underside. It is suitable for deck thicknesses up to 4mm.
Fixing clip
A fixing clip helps to fix either the top side of a ball deck or the underside. It is suitable for deck thicknesses up to 4mm.
Features and Benefits
Ball diameter is 30mm
Case material is stainless steel
Felt or plastic seal (except 15mm)
Flange diameter is 55mm
Flange type fitting
Load ball material is stainless steel
Main bearing cup toughened steel
Self-cleaning hole
Operating temperature ranging between -30°C and 70°C
Case material is stainless steel
Felt or plastic seal (except 15mm)
Flange diameter is 55mm
Flange type fitting
Load ball material is stainless steel
Main bearing cup toughened steel
Self-cleaning hole
Operating temperature ranging between -30°C and 70°C
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
Specifikationer
Attribute | Value |
---|---|
Ball Diameter | 30mm |
Mounting Type | Circular Flange |
Maximum Load | 175kg |
Load Ball Material | Stainless Steel |
Case Material | Stainless Steel |
Flange Diameter | 55mm |
