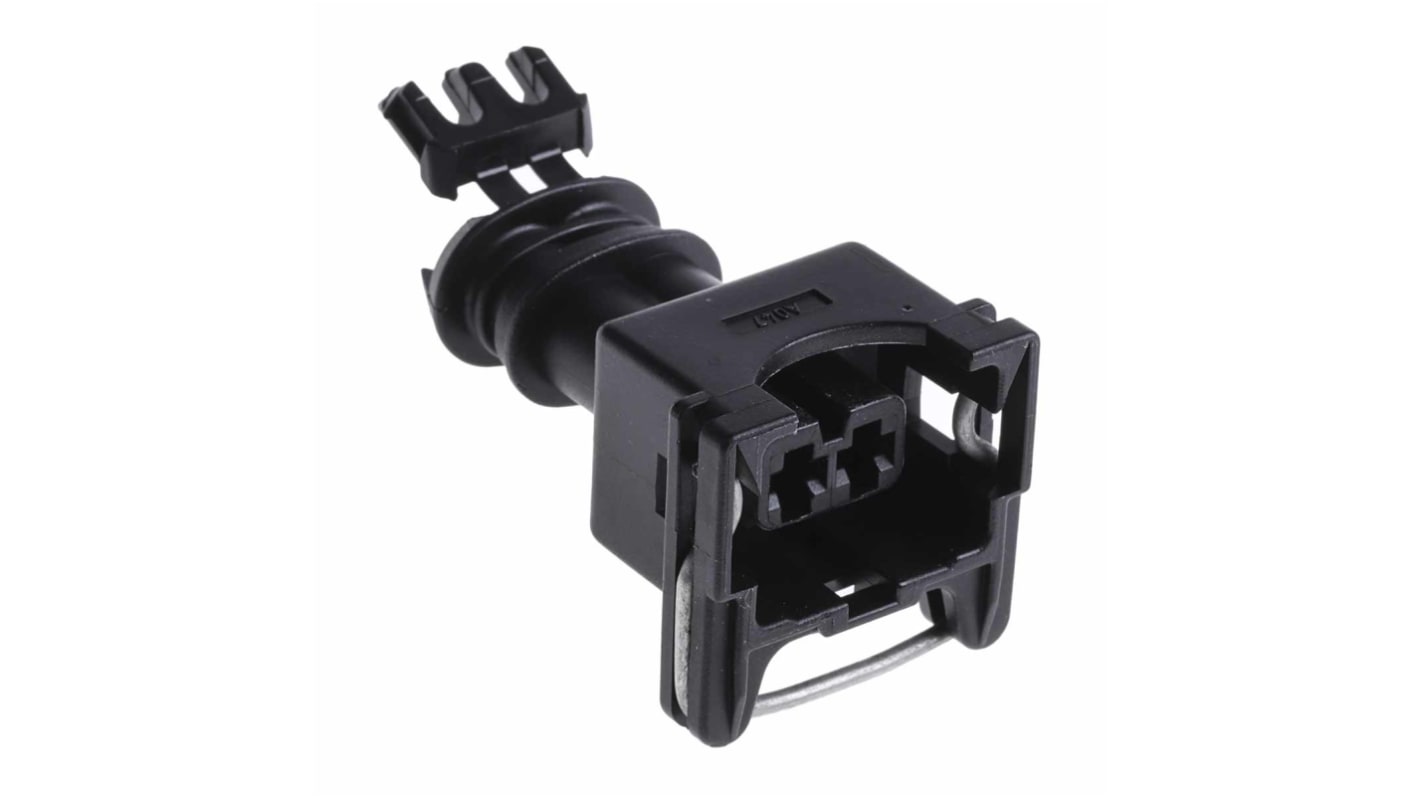

TE Connectivity, Junior Power Timer Automotive Connector Socket 2 Way, Crimp Termination
- RS-artikelnummer:
- 718-6867
- Tillv. art.nr:
- 282189-1
- Tillverkare / varumärke:
- TE Connectivity
335 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
10,39 kr
(exkl. moms)
12,99 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 10,39 kr |
| 10 - 99 | 8,86 kr |
| 100 + | 6,78 kr |
- RS-artikelnummer:
- 718-6867
- Tillv. art.nr:
- 282189-1
- Tillverkare / varumärke:
- TE Connectivity
Lagstiftning och ursprungsland
Produktdetaljer
TE Connectivity Junior Power Timer Connector Housings with Secondary Locking
Junior Power timer receptacle style connector housings for socket contacts with a 5mm centreline. These receptacle housings are sealed and have a secondary locking mechanism.
Timer connector housings are accessible from power to high pin density PCB links with a broad range of cavity choices. These connectors recognize Timer contacts and are accessible in housings for pins and receptacles.
Features and Benefits
• Connector Style: Housing for female terminals.
• Connector System: Wire-to-Board, Wire-to-Device.
• Primary Locking Feature: Integrated in Housing, On the Terminal
• Number of Positions: 55
• Pitch: 5 mm
• Series: Junior Power Timer
Timer connector housings are accessible from power to high pin density PCB links with a broad range of cavity choices. These connectors recognize Timer contacts and are accessible in housings for pins and receptacles.
Features and Benefits
• Connector Style: Housing for female terminals.
• Connector System: Wire-to-Board, Wire-to-Device.
• Primary Locking Feature: Integrated in Housing, On the Terminal
• Number of Positions: 55
• Pitch: 5 mm
• Series: Junior Power Timer
TE Connectivity Automotive Connectors
Specifikationer
Attribute | Value |
|---|---|
| Number of Contacts | 2 |
| Type | Automotive connector housing |
| Gender | Female |
| Number of Rows | 1 |
| Current Rating | 20A |
| Mounting Type | Free Hanging |
| Series | Junior Power Timer |
| Colour | Black |
| Termination Method | Crimp |
| Width | 23.8mm |
| Housing Material | Nylon |
| Depth | 37.5mm |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -30°C |
