- RS-artikelnummer:
- 696-4193
- Tillv. art.nr:
- AT06-6S
- Tillverkare / varumärke:
- Amphenol Industrial
- RS-artikelnummer:
- 696-4193
- Tillv. art.nr:
- AT06-6S
- Tillverkare / varumärke:
- Amphenol Industrial
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

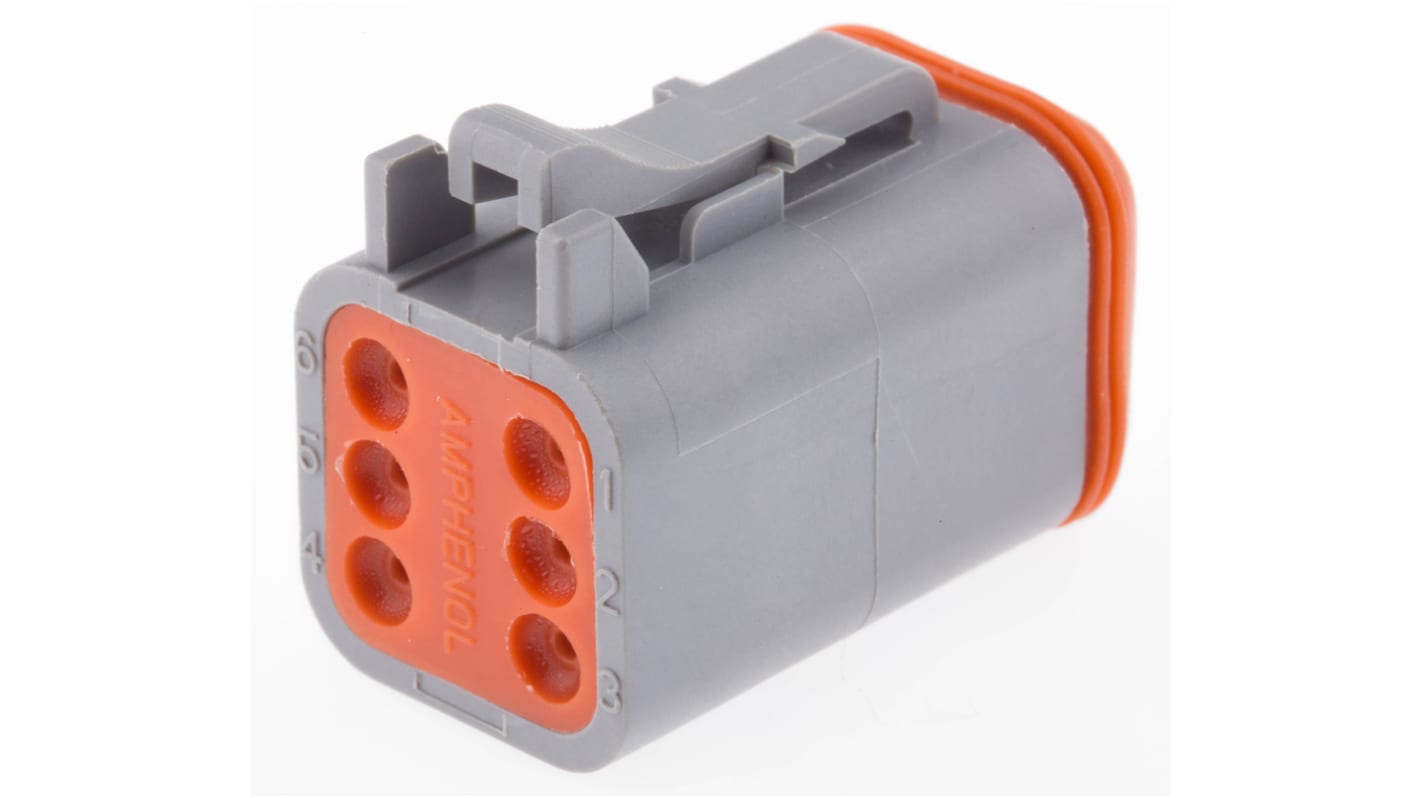

AT Series Receptacles and Plugs
These connectors feature a unique latching system that ensure a definite electrical and mechanical connection, the housings are of a thermoplastic material that has excellent UV resistance, Ideal for automotive/military and heavy industry applications.
Silicon front and rear sealing system
UV resistant thermoplastic shell
Copper alloy contacts
13 A current capacity
-55 to + 125° C operating temperature
UL94 V-0 dielectric flammability rating
UV resistant thermoplastic shell
Copper alloy contacts
13 A current capacity
-55 to + 125° C operating temperature
UL94 V-0 dielectric flammability rating
Amphenol AT Series Connectors
Specifikationer
Attribute | Value |
---|---|
Type | Power Connector |
Number of Contacts | 6 |
Gender | Male |
Mounting Type | Cable Mount |
Series | AT |
Width | 18.18mm |
Depth | 31.2mm |
