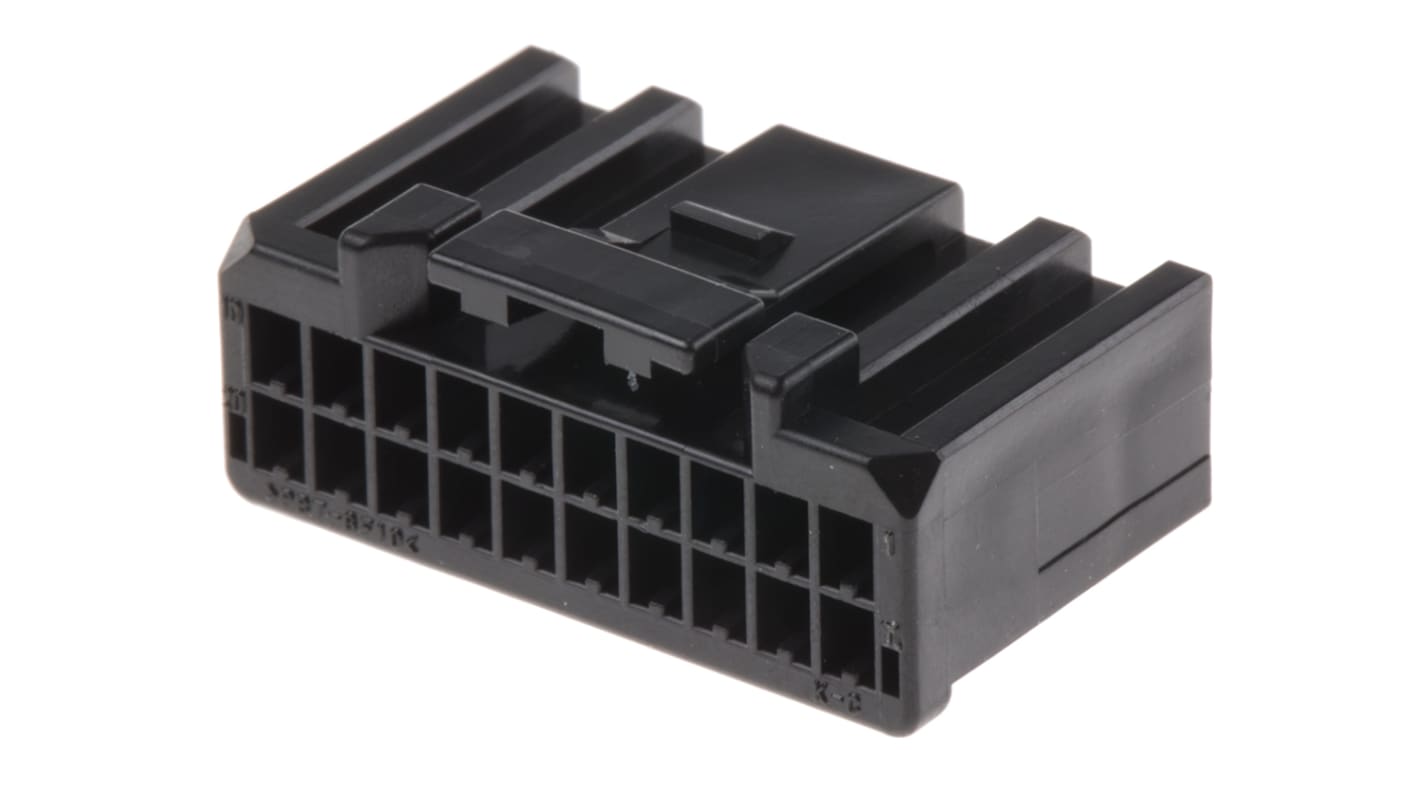

JST CPT Series, 2 Row 20 Way Surface Mount Socket CPT Connector, with Solder Termination Method

  • RS-artikelnummer 172-5108
  • Tillv. art.nr 20CPT-B-2A
  • Tillverkare / varumärke JST
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): JP
Produktdetaljer

JST CPT 2.0 mm Pitch Female Housings

A series of cable mount female housings from the CPT range of automotive connectors. With a 2.0 mm pitch and the ability to accept compact female terminals make these mini rugged housings ideal for space critical applications. The housings are designed to accept crimp terminal 123-8233 and have a cable acceptance size of 0.3 mm² to 1.4 mm². The housings in this range are available in both single and double row circuits in 2,4,8,12,16 and 20 way. A suitable crimp tool 123-8234 is also available separately.

Features and Benefits

• Developed for a miniaturised and low profile wire to board PCB connections in automobile applications • Provides high reliability in automotive electrical equipment
• Rugged and compact design
• Wide temperature range - 40°C - + 100°C
• Compact size

Applications

• Automotive

JST Range

Specifikationer
Attribute Value
Type CPT Connector
Number of Contacts 20
Gender Female
Number of Rows 2
Current Rating 3A
Mounting Type Surface Mount
Series CPT
Colour Black
Termination Method Crimp
Height 9.1mm
Width 22mm
Depth 13.5mm
Corded Yes
Contact Plating Gold over Nickel
Housing Material Glass Filled PBT
Contact Material Brass
Maximum Operating Temperature +100°C
Minimum Operating Temperature -40°C
500 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Box of 250)
15,909 kr
(exkl. moms)
19,886 kr
(inkl. moms)
Enheter
Per unit
Per Box*
250 +
15,909 kr
3 977,25 kr
