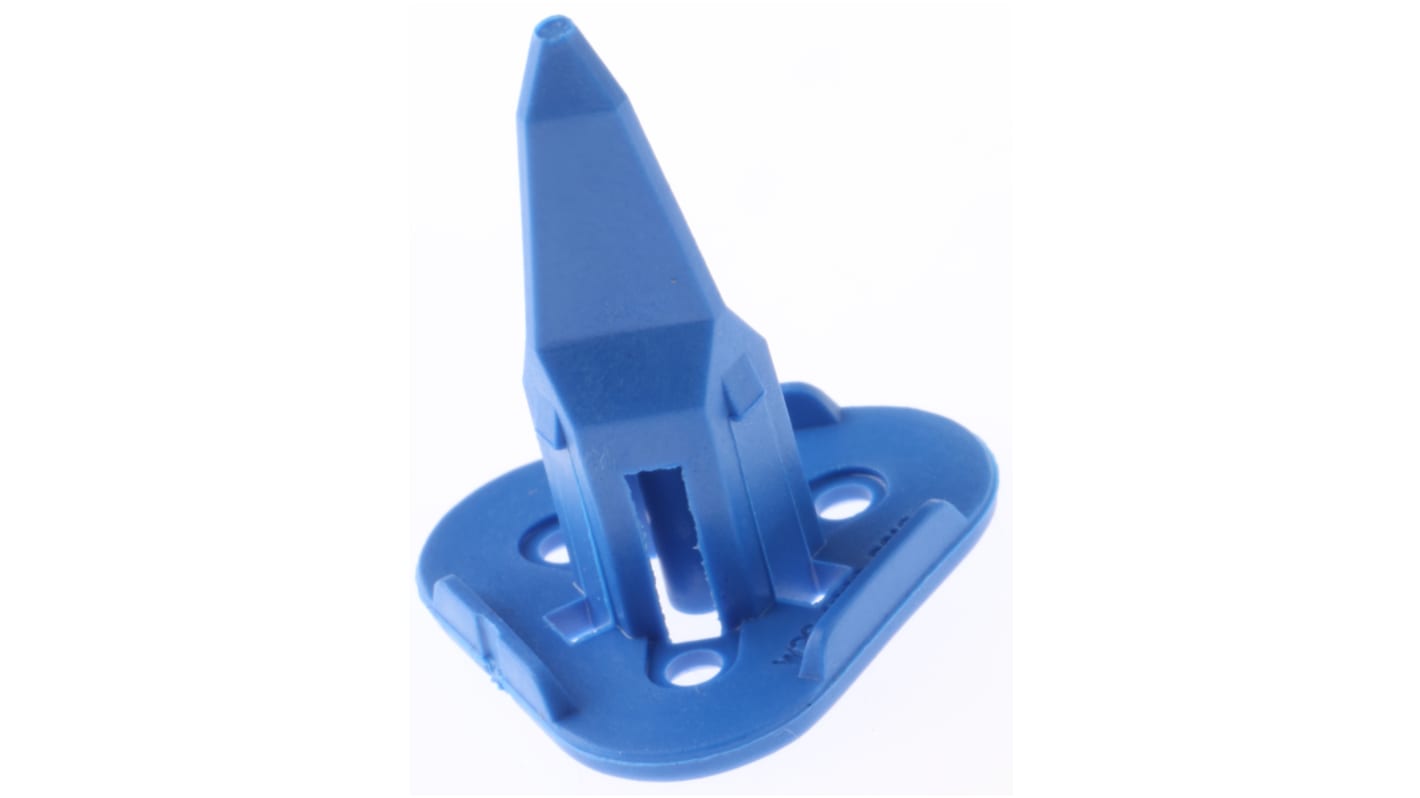

Deutsch DT Series Wedgelock for use with Automotive Connectors

  • RS-artikelnummer 724-2254
  • Tillv. art.nr W3S-1939-P012
  • Tillverkare / varumärke Deutsch
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): US
Produktdetaljer

DT Series Connectors, General Purpose Plugs and Receptacles

Deutsch DT Series connector plugs and receptacles are designed for cable to cable automotive applications within the engine compartment, chassis or cab. These harsh environment connectors provide reliability and excellent performance where even a small degree of connector contact degradation is critical.

Features and Benefits:

• Tactile and audible connector mating
• Rugged thermoplastic connector housing
• Hand insertable/removable contacts
• Operating temperature range -55 → +125 °C
• Dielecric withstand voltage 1500 Vac
• Nickel plated copper alloy contacts
• Positive contact retention
• Suitable for size 16 contacts

Note

For suitable contacts see 425-761 and range for suitable crimp too see 425-973 and for sealing grommets size 16 see 425-430

Deutsch DT Series Connectors

Deutsch DT series connectors are ideally suited for applications that require a secure reliable connector in harsh environments such as under-the-hood, transmission tunnels and many others areas that require secure connections in both power and signal.

Specifikationer
Attribute Value
Accessory Type Wedgelock
For Use With Automotive Connectors
Series DT
2060 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Bag of 5)
4,798 kr
(exkl. moms)
5,998 kr
(inkl. moms)
Enheter
Per unit
Per Bag*
5 - 95
4,798 kr
23,99 kr
100 - 370
4,342 kr
21,71 kr
375 - 1495
3,868 kr
19,34 kr
1500 - 2995
3,37 kr
16,85 kr
3000 +
2,896 kr
14,48 kr
