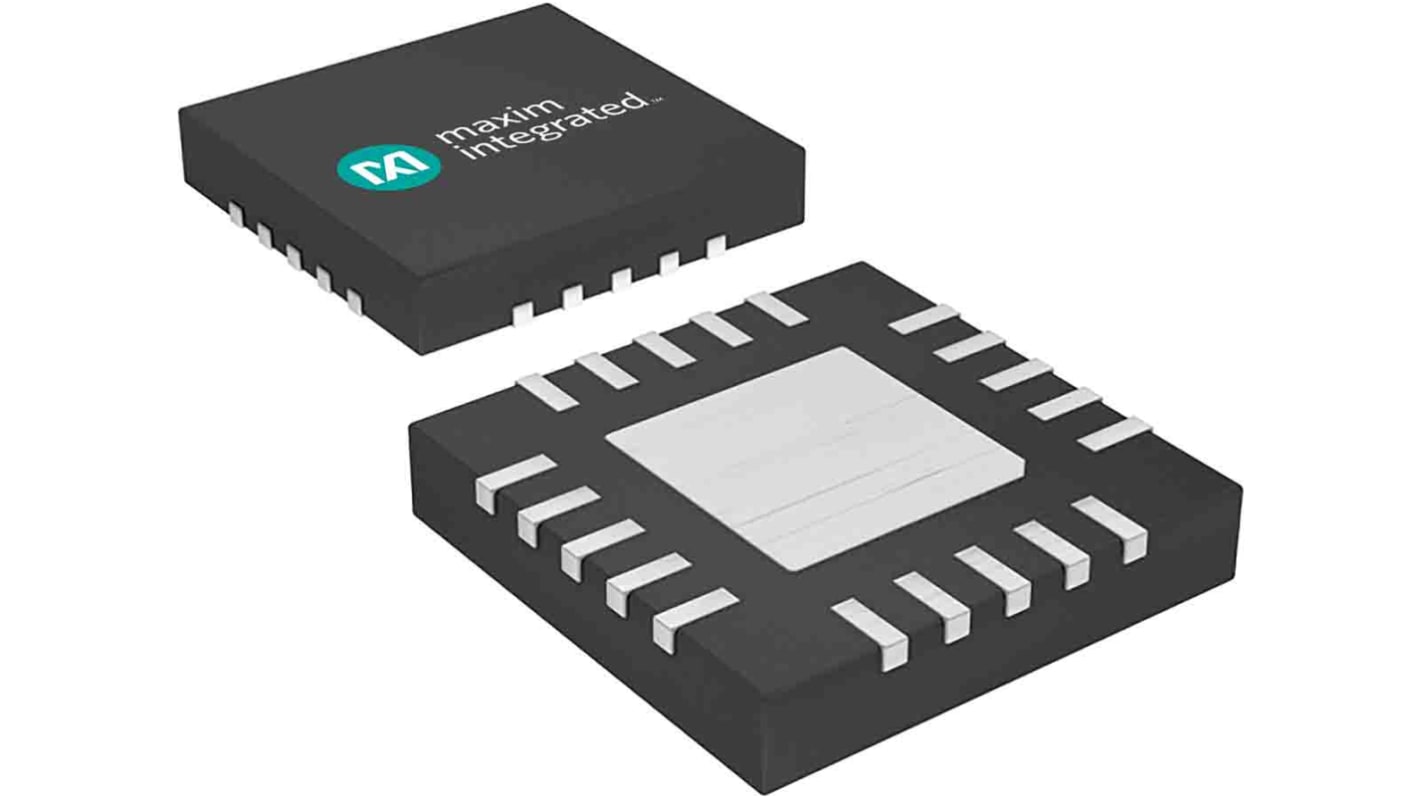

MAX9860ETG+T, Audio Codec IC, 1 (DAC), 2 (ADC)-Channel, 24-Pin TQFN
- RS-artikelnummer:
- 191-3745
- Tillv. art.nr:
- MAX9860ETG+T
- Tillverkare / varumärke:
- Maxim Integrated
2705 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 5)
34,446 kr
(exkl. moms)
43,058 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 5 - 5 | 34,446 kr | 172,23 kr |
| 10 - 20 | 31,162 kr | 155,81 kr |
| 25 - 95 | 29,876 kr | 149,38 kr |
| 100 - 245 | 24,132 kr | 120,66 kr |
| 250 + | 22,712 kr | 113,56 kr |
- RS-artikelnummer:
- 191-3745
- Tillv. art.nr:
- MAX9860ETG+T
- Tillverkare / varumärke:
- Maxim Integrated
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
1.8V Single-Supply Operation
Digital Highpass Elliptical Filters with Notch for 217Hz (GSM)
Mono 30mW BTL Headphone Amplifier
Dual Low-Noise Microphone Inputs
Automatic Microphone Gain Control and Noise Gate
90dB DAC DR (fS = 48kHz)
81dB ADC DR (fS = 48kHz)
Supports Master Clock Frequencies from 10MHz to 60MHz
Supports Sample Rates from 8kHz to 48kHz
Flexible Digital Audio Interface
Clickless/Popless Operation
2-Wire, I²C-Compatible Control Interface
Available in 24-Pin, Thin QFN, 4mm x 4mm x 0.8mm Package
Applications
Audio Accessories
Audio Headsets
Mobile Phones
Portable Navigation Device
Smart Phones
VoIP Phones
Digital Highpass Elliptical Filters with Notch for 217Hz (GSM)
Mono 30mW BTL Headphone Amplifier
Dual Low-Noise Microphone Inputs
Automatic Microphone Gain Control and Noise Gate
90dB DAC DR (fS = 48kHz)
81dB ADC DR (fS = 48kHz)
Supports Master Clock Frequencies from 10MHz to 60MHz
Supports Sample Rates from 8kHz to 48kHz
Flexible Digital Audio Interface
Clickless/Popless Operation
2-Wire, I²C-Compatible Control Interface
Available in 24-Pin, Thin QFN, 4mm x 4mm x 0.8mm Package
Applications
Audio Accessories
Audio Headsets
Mobile Phones
Portable Navigation Device
Smart Phones
VoIP Phones
Specifikationer
Attribute | Value |
|---|---|
| IC Type | Audio Codec IC |
| Number of Channels | 1 (DAC), 2 (ADC) |
| Power Supply Type | Single |
| Mounting Type | Surface Mount |
| Package Type | TQFN |
| Pin Count | 24 |
| Number of DACs | 1 |
| Typical Operating Supply Voltage | 1.8 V |
| Dimensions | 4.1 x 4.1 x 0.75mm |
| Sampling Rate | 8 to 48kHz |
| ADC/DAC Resolution | 16bit |
| Number of ADCs | 2 |
| Maximum Operating Temperature | +85 °C |
| Codec Type | Mono Audio |
| Minimum Operating Temperature | -40 °C |
