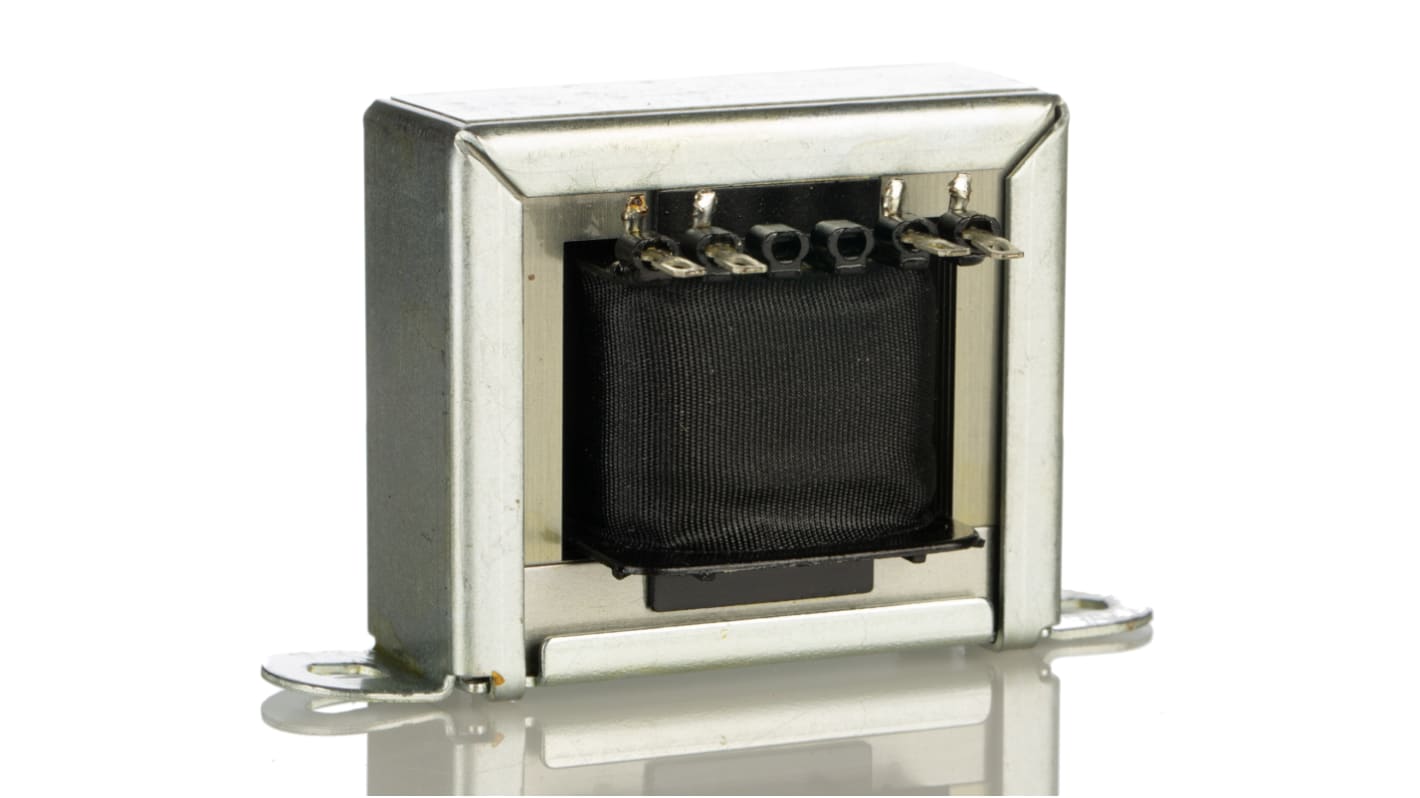

Chassis Mount Audio Transformer 3 → 15Ω 3.5W

  • RS-artikelnummer 210-6475
  • Tillv. art.nr N35A002F
  • Tillverkare / varumärke OEP
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): GB
Produktdetaljer

Multi-tapped Output Matching 3.5W AF Transformers

From OEP, this multi-tapped transformer is suitable for matching 3Ω to 15Ω speech coils to the high impedance output (4kΩ to 15kΩ) of audio amplifiers. This chassis mounted transformer is suitable for various amplifier configurations.

Note

Impedance ranges quoted (in attributes) are for choice between several specific values, within the ranges, depending on the tapping used.

//media.rs-online.com/t_line/L217567-01.gif
Specifikationer
Attribute Value
Primary Impedance 4 → 15kΩ
Secondary Impedance 3 → 15Ω
Primary DC Resistance 1012Ω
Power Rating 3.5W
Current Rating 40mA
Secondary DC Resistance 1.5Ω
Dimensions 74 x 41.5 x 36mm
Mounting Type Chassis Mount
Weight 250g
Depth 36mm
Length 74mm
Width 41.5mm
Primary Current Rating 40mA
26 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
183,64 kr
(exkl. moms)
229,55 kr
(inkl. moms)
Enheter
Per unit
1 - 9
183,64 kr
10 - 24
157,69 kr
25 - 49
154,89 kr
50 - 99
152,31 kr
100 +
144,35 kr
