Surface Mount Audio Transformer
- RS-artikelnummer:
- 122-9165
- Tillv. art.nr:
- SM-LP-5001E
- Tillverkare / varumärke:
- Bourns
226 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 2)
24,84 kr
(exkl. moms)
31,05 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 2 - 98 | 24,84 kr | 49,68 kr |
| 100 - 198 | 15,305 kr | 30,61 kr |
| 200 - 398 | 14,64 kr | 29,28 kr |
| 400 - 998 | 14,195 kr | 28,39 kr |
| 1000 + | 13,365 kr | 26,73 kr |
- RS-artikelnummer:
- 122-9165
- Tillv. art.nr:
- SM-LP-5001E
- Tillverkare / varumärke:
- Bourns
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

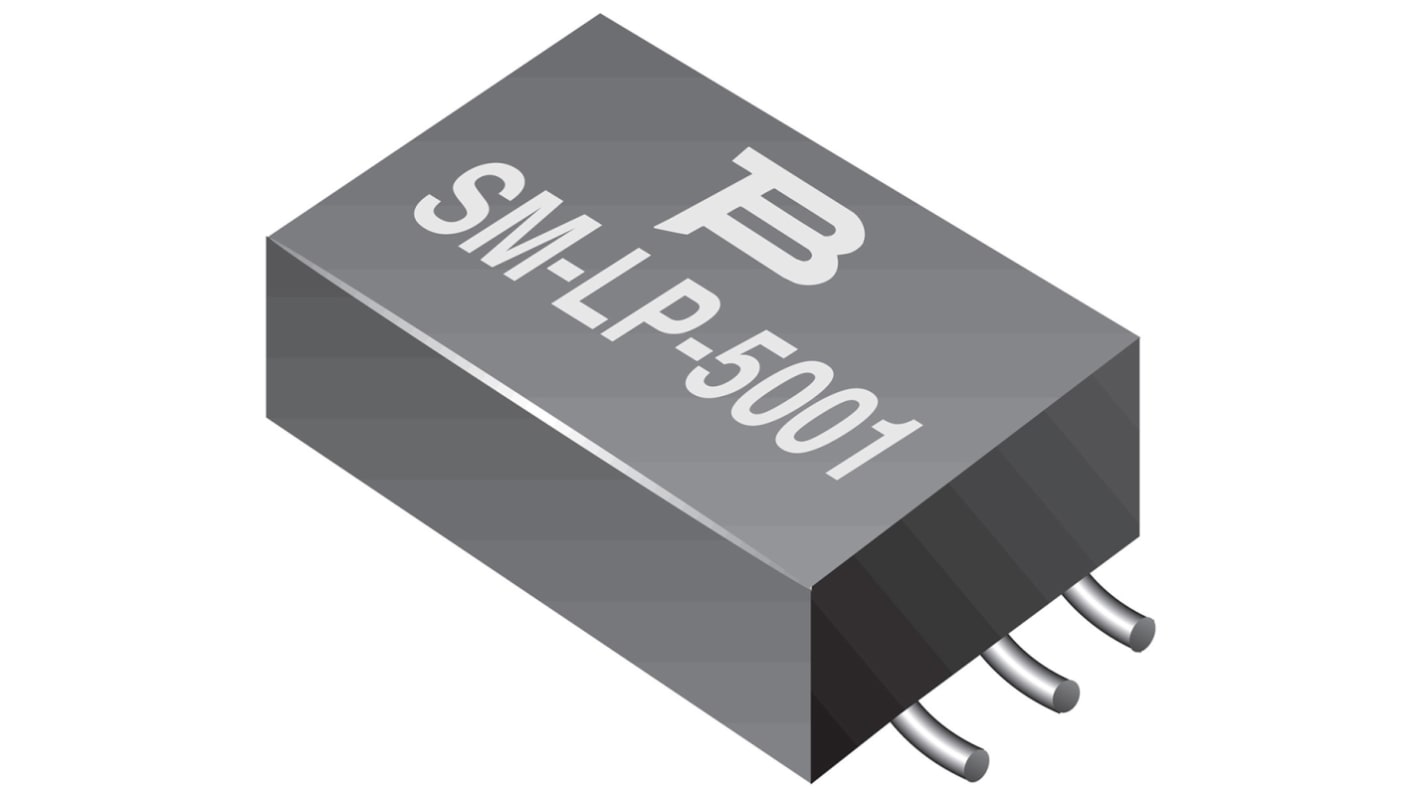

Bourns SM-LP-5001 Series Surface Mount Line Matching Transformers
SM-LP-5001 line matching transformers from Bourns are a subminiature solution, with a seated height of only 7.5 mm. These line matching transformers are vacuum encapsulated and have low distortion of only 0.015%.
600 Ω nominal impedance
80 dB minimum balance
-76 dB maximum distortion at 600 Hz
2000 Vrms dielectric strength for 1 minute
80 dB minimum balance
-76 dB maximum distortion at 600 Hz
2000 Vrms dielectric strength for 1 minute
Product Application Information
Suitable applications for these line matching transformers include instrumentation, telecommunications, laptops and modems (V32).
Specifikationer
Attribute | Value |
|---|---|
| Primary Impedance | 600Ω |
| Primary DC Resistance | 115Ω |
| Secondary DC Resistance | 115Ω |
| Dimensions | 12.8 x 7.5 x 9mm |
| Mounting Type | Surface Mount |
| Termination Type | Solder |
| Depth | 9mm |
| Length | 12.8mm |
| Width | 7.5mm |
| Core Type | Laminated |
| Construction | Encapsulated |
| Standards Met | UL 60950 |
| Maximum Operating Frequency | 4kHz |
| Isolation Voltage | 1.5kV |
| Minimum Operating Frequency | 200Hz |
| Turns Ratio | 1:1 |
| Minimum Temperature | -20°C |
| Maximum Temperature | +85°C |
