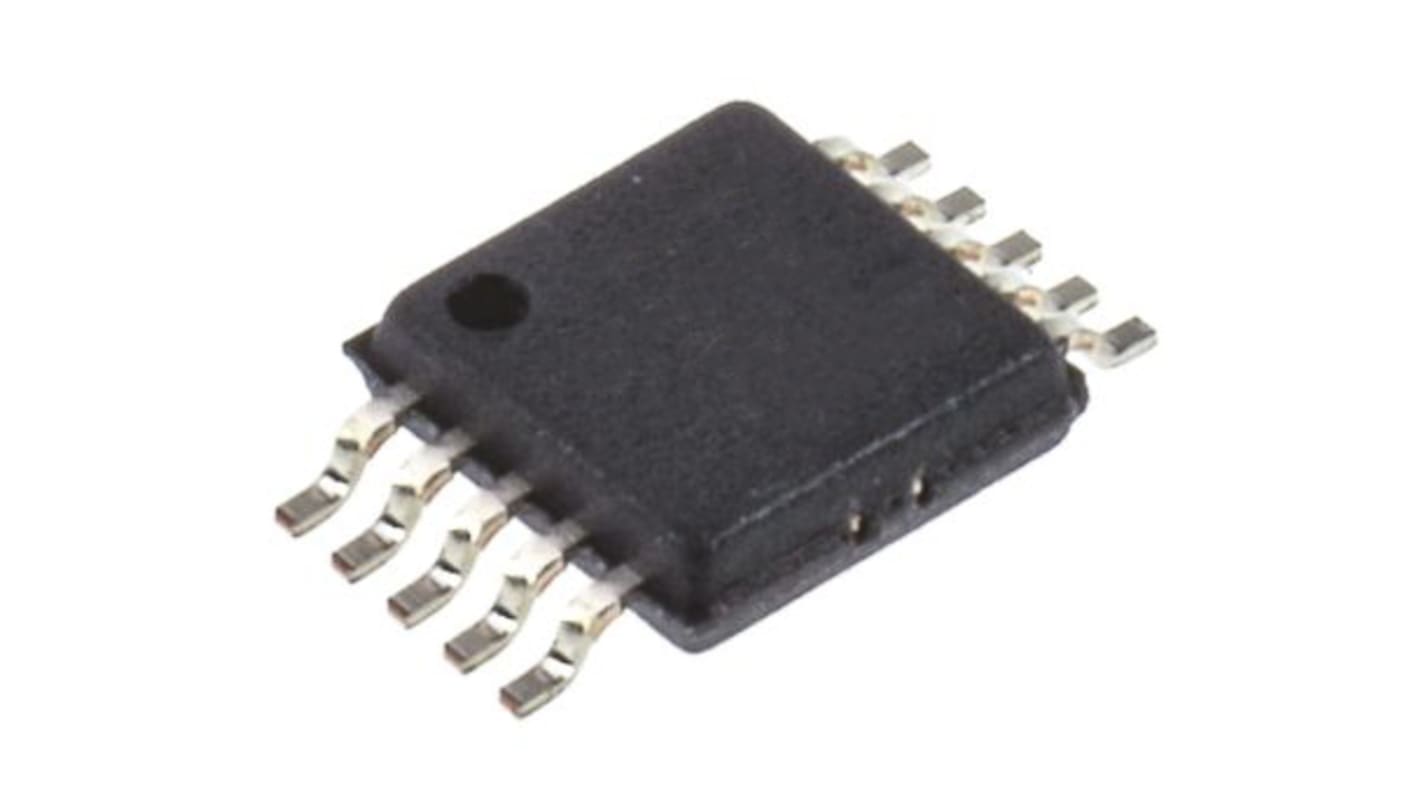

Maxim Integrated,Audio, 10-Pin μMAX MAX4062EUB+
- RS-artikelnummer:
- 190-5700
- Tillv. art.nr:
- MAX4062EUB+
- Tillverkare / varumärke:
- Maxim Integrated
Det är tyvärr inte möjligt att visa lagerbehållning för närvarande. Uppdatera sidan och försök igen.
Nästa dag-leverans inte möjlig
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 10)
15,182 kr
(exkl. moms)
18,978 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 10 - 20 | 15,182 kr | 151,82 kr |
| 30 - 90 | 11,123 kr | 111,23 kr |
| 100 - 240 | 9,748 kr | 97,48 kr |
| 250 - 490 | 9,227 kr | 92,27 kr |
| 500 + | 8,329 kr | 83,29 kr |
- RS-artikelnummer:
- 190-5700
- Tillv. art.nr:
- MAX4062EUB+
- Tillverkare / varumärke:
- Maxim Integrated
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
2.4V to 5.5V Single-Supply Operation
Adjustable Gain or Fixed-Gain Options
High PSRR (86dB at 1kHz)
High CMRR (70dB at 1kHz)
Low Input-Referred Noise
Integrated Microphone Bias
750μA Supply Current
0.3μA Shutdown Current
±4kV ESD Protection (AUX_IN)
Rail-to-Rail Outputs
THD+N: 0.04% at 1kHz
Available in Space-Saving Packages
8-Pin TDFN (MAX4060/MAX4061)
8-Pin μMAX (MAX4060/MAX4061)
10-Pin μMAX (MAX4062)
Applications
Notebook Audio Systems
PDA Audio Systems
Signal Conditioning
Tablet PCs
USB Audio Peripherals
Adjustable Gain or Fixed-Gain Options
High PSRR (86dB at 1kHz)
High CMRR (70dB at 1kHz)
Low Input-Referred Noise
Integrated Microphone Bias
750μA Supply Current
0.3μA Shutdown Current
±4kV ESD Protection (AUX_IN)
Rail-to-Rail Outputs
THD+N: 0.04% at 1kHz
Available in Space-Saving Packages
8-Pin TDFN (MAX4060/MAX4061)
8-Pin μMAX (MAX4060/MAX4061)
10-Pin μMAX (MAX4062)
Applications
Notebook Audio Systems
PDA Audio Systems
Signal Conditioning
Tablet PCs
USB Audio Peripherals
Specifikationer
Attribute | Value |
|---|---|
| Amplifier Type | Audio |
| Output Type | Rail to Rail |
| Application | Microphone |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 2.4 → 5.5 V |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Package Type | μMAX |
| Pin Count | 10 |
| Input Signal Type | Differential, Single Ended |
| Output Signal Type | Differential |
| Typical Gain Bandwidth Product | 200kHz |
| Minimum CMRR | 70dB |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 3.16 x 3.12 x 0.95mm |
