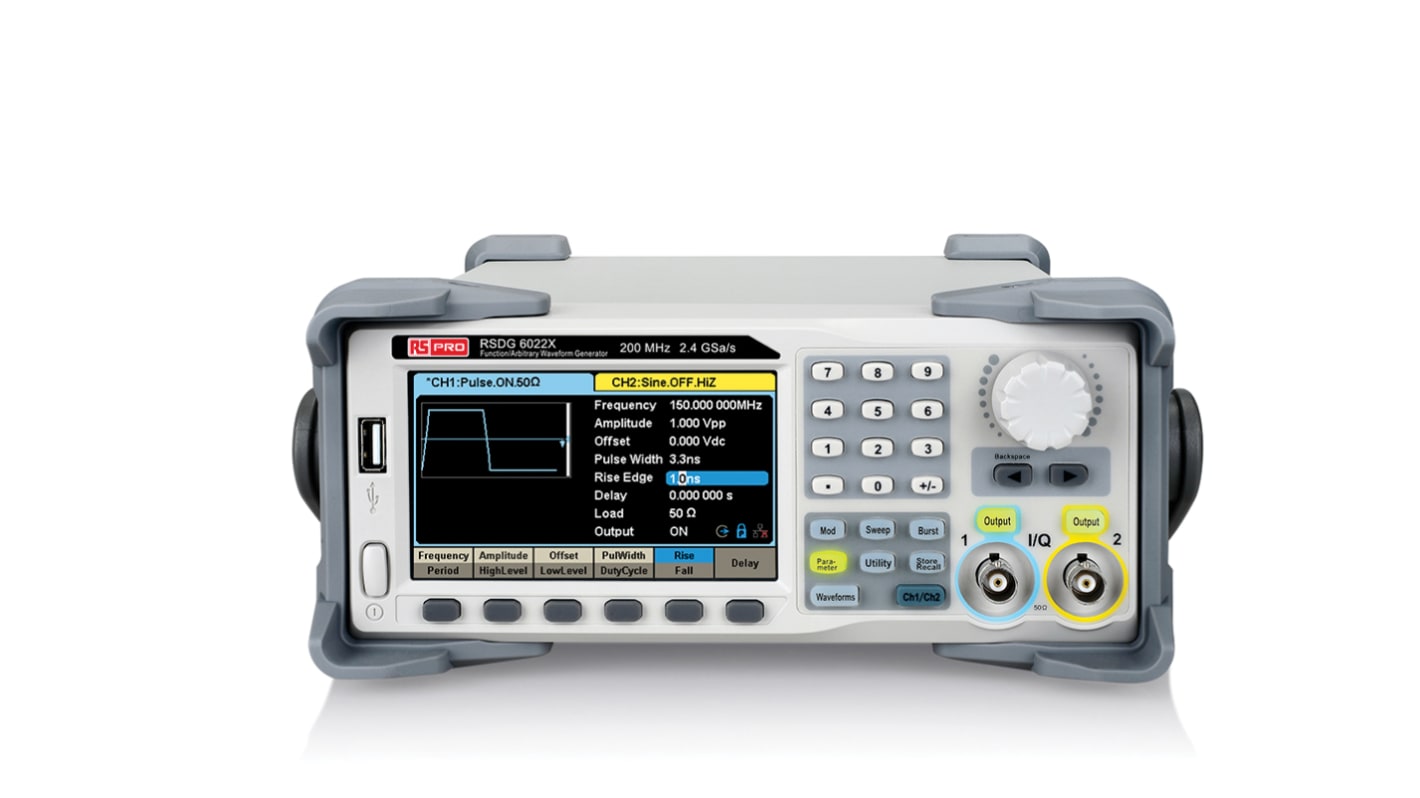

RS PRO SDG6022X Arbitrary Waveform Generator 200MHz
7 I lager för leverans inom 3-5 arbetsdagar
Lagt till varukorgen
- RS-artikelnummer:
- 188-2703
- Tillverkare / varumärke:
- RS PRO
- COO (Country of Origin):
- CN
| Enheter | Per unit |
| 1 + | 29 837,21 kr |
<B>RS PRO RSDG6022X Pulse/Arbitrary Waveform Generator 200 MHz (RSCAL)</B>
<B>Features and benefits</B>
<B>Applications</B>
<B>FAQs</B>
<B>Is this calibrated?</B>
<B>What is supplied with the unit?</B>
| Attribute | Value |
| Maximum Frequency | 200MHz |
| Maximum Frequency Triangle Ramps | 500MHz |
| Minimum Frequency Triangle Ramps | 1µHz |
| Maximum Sampling Frequency | 2.4Gsps |
| Resolution | 1 μHz |
| Calibrated | RSCAL |
| Minimum Pulse Width | 3.4ns |
| Arbitrary Waveforms | Yes |
| Length | 260.3mm |
| Model Number p | SDG6022X |
| Weight | 3.5kg |
| Maximum Operating Temperature | +40°C |
| Dimensions | 260.3 x 295.7 x 107.2mm |
| Maximum Output Amplitude | 20V Pk-Pk |
| Minimum Operating Temperature | 0°C |
| Sweep | Linear, Logarithmic |
| Rise - Fall Time | 1 (PRBS) μs, 2 (Pulse) ns, 2.4 (Square) ns, 2.6 (Arbitrary) |
| Width | 295.7mm |
| Height | 107.2mm |
| Connector Type | USB |
