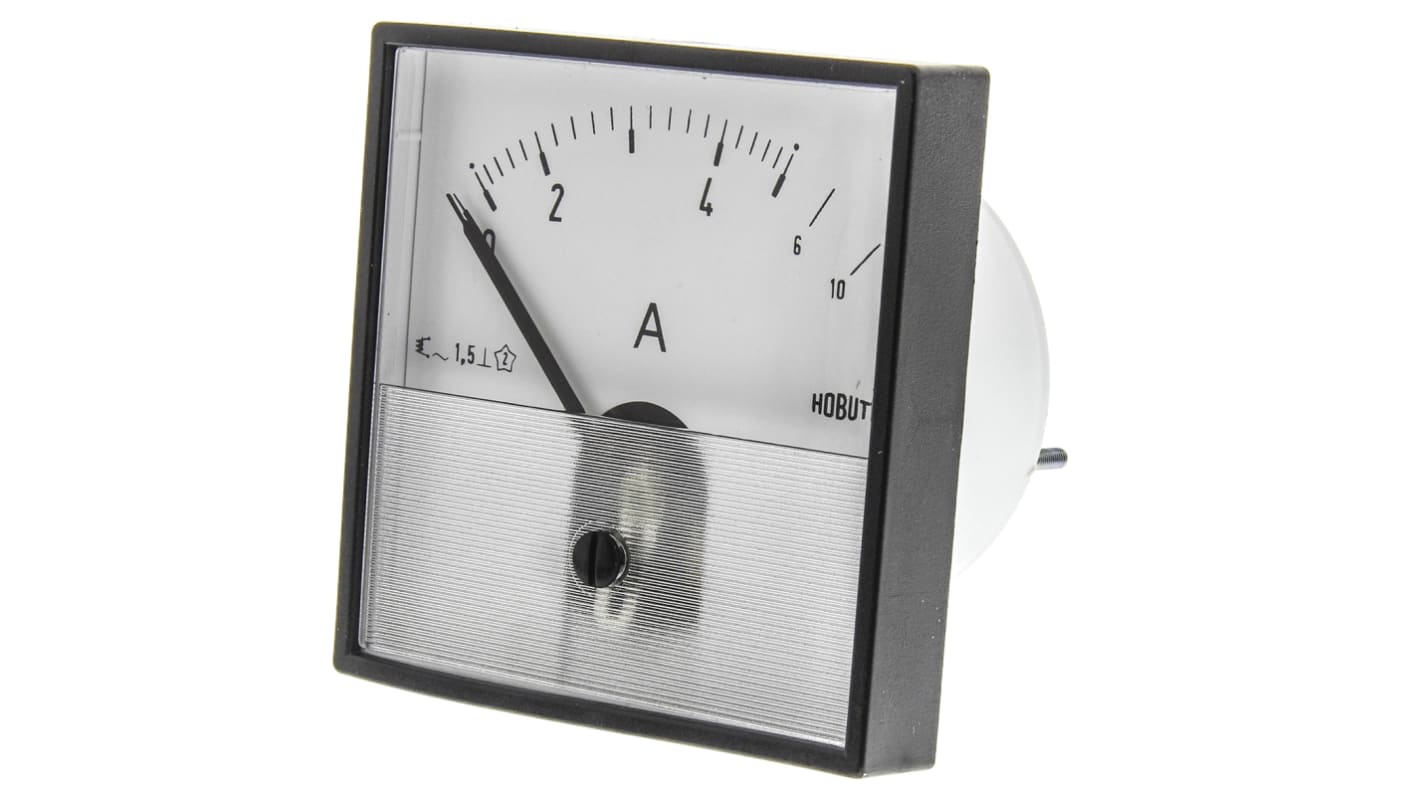

HOBUT Analogue Panel Ammeter 0/5/10A Direct Connected AC, 72mm x 72mm Moving Iron
- RS-artikelnummer:
- 287-2037
- Tillv. art.nr:
- PD72MIS5A2/2-001 0/5/10A
- Tillverkare / varumärke:
- HOBUT
9 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
409,28 kr
(exkl. moms)
511,60 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 409,28 kr |
| 5 - 9 | 397,02 kr |
| 10 + | 380,60 kr |
- RS-artikelnummer:
- 287-2037
- Tillv. art.nr:
- PD72MIS5A2/2-001 0/5/10A
- Tillverkare / varumärke:
- HOBUT
Lagstiftning och ursprungsland
- COO (Country of Origin):
- GB
Produktdetaljer
AC Moving Iron Current and Voltage Meters
A series from 72 x 72 mm DIN sized panel meter with a horizontal scale, used widely in the panel building industry.
Panel Meter with integrated, horizontal 90° scale
Accuracy class 1.5 to BS89 IEC51
Scaled up to 40A direct connected
Flame retardant case to UL94V0
Protection Class IP52 (front of panel)
Fixing via single hole using ’U’ clamp (anti-rotation pin supplied), or 4-point M3
Note
Ammeter overload is twice current rating - shown within (brackets) in scale range .
Supplied with
mounting brackets
Specifikationer
Attribute | Value |
|---|---|
| Maximum Value | 0/5/10A Direct Connected |
| Current Type | AC |
| Moving Element | Moving Iron |
| Cutout Height | 72mm |
| Cutout Width | 72mm |
| Depth | 30.5mm |
| Meter Accuracy | Class 1.5 |
| Minimum Temperature | -25°C |
| Maximum Temperature | +40°C |
| Measurement Range | 0/5/10A Direct Connected |
