Pneumatic Suction Cups

Pneumatic suction cups are also known as vacuum cups, vacuum pads and suckers and they can be attached to various surfaces to provide a safe and secure way to move and hold products. Suction cups mould to the shape of the object they are handling without causing any damage. Suction cups are manufactured from a range of materials and perform well in many environments from light duty to heavy industrial.

A suction cup works by having less air pressure on one side of the cup than the other side of the suction cup. When pressure is put onto the suction cup it forces air out of the area, creating a vacuum. The vacuum created enables you to move and lift any product. Suction cups will not work when there is a low atmospheric pressure. Before use check that the suction cup surface is clean and free from dirt or grit to ensure a maximum grip.

Special grippers are sometimes used in tasks which suction cups cannot be used to handle delicate and brittle workpieces and are referred to as Bernoulli effect grippers.

How do pneumatic suction cups work?

When a suction cup contacts the surface of an object, it activates a vacuum generator (such as a blower, vacuum ejector or vacuum pump) that draws air from the space between the cup and the item. As soon as the atmospheric pressure is greater than the pressure between the object and the cup, atmospheric pressure presses the suction cup against the item, holding it firmly.

What is holding force?

Holding force is the amount of force required to move an object. This is measured in Newtons (N) and when looking for the right suction cup, ensure you choose one that will lift, move the weight and size of the object.

What are suction cups made of?

Suction cups are made from various materials like:

  • Silicone
  • Nitrile
  • Polyurethane (PUR)
  • Fluororubber
  • Silicone rubber

Suction Cup Types Available

  • Bellows - ideal for concave and convex shapes. Require minimum pressure. Work on slanted surfaces. Absorbs any alignment problems.
  • Deep - excellent with curved objects. Enhanced grip.
  • Flat - suitable for glass, metal sheets and cardboard.

Pneumatic suction cups are available in a range of shapes, sizes, diameters and designs and will handle most products. RS Components have a great range of pneumatic products including suction cups and grippers suitable for every industry and application.


...
Read more Read less

Filter

Visar 1 - 20 av 486 produkter
Resultat per sida
Beskrivning Pris Manufacturer Series Pad Type Pad Diameter Pad Material Holding Force With Buffer Vacuum Entry Direction Connection Type Threaded Connection Size Tube Outside Diameter Material
RS-artikelnummer 227-3913
Tillv. art.nrZP13BS
VarumärkeSMC
79,46 kr
Each
Enheter
ZP Bellows 13mm Silicon Rubber - - - - - - -
RS-artikelnummer 686-2712
Tillv. art.nrZP08BN
VarumärkeSMC
60,24 kr
Each
Enheter
ZP Bellows 8mm NBR - - - - - - -
RS-artikelnummer 827-8784
Tillv. art.nrZP13US
VarumärkeSMC
36,26 kr
Each
Enheter
ZP Flat 13mm Silicon Rubber - - - - - - -
RS-artikelnummer 725-355
Tillv. art.nrZPR10CN-06-B5
VarumärkeSMC
210,83 kr
Each
Enheter
ZPR Flat with Rib 10mm NBR - - Lateral Female Thread M5 x 0.8 - -
RS-artikelnummer 827-6561
Tillv. art.nrZPT2-B5
VarumärkeSMC
75,85 kr
Each
Enheter
ZPT - 10 → 16mm - - Yes Vertical Female Thread M5 x 0.8 - -
RS-artikelnummer 703-6258
Tillv. art.nr1820415039
96,26 kr
Each
Enheter
BSG Bellows 20mm Acrylonitrile Butadiene Rubber 5.7N - - Male Thread 1/8 in - -
RS-artikelnummer 227-3676
Tillv. art.nrZPR06UN-04-B4
VarumärkeSMC
176,77 kr
Each
Enheter
ZPR Flat 6mm NBR - - Lateral Female Thread M4 x 0.7 - -
RS-artikelnummer 227-3777
Tillv. art.nrZP80HN
VarumärkeSMC
135,54 kr
Each
Enheter

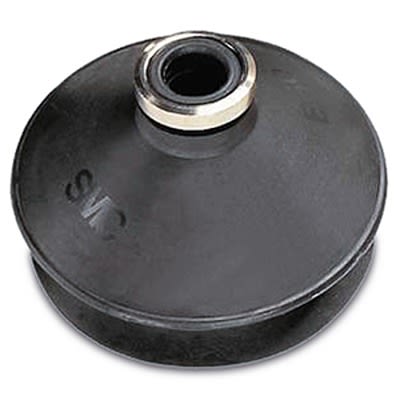

ZP Heavy Duty 80mm NBR - - - - - - -
RS-artikelnummer 227-3929
Tillv. art.nrZP16BS
VarumärkeSMC
93,63 kr
Each
Enheter
ZP Bellows 16mm Silicon Rubber - - - - - - -
RS-artikelnummer 827-6634
Tillv. art.nrZP25CS
VarumärkeSMC
42,03 kr
Each
Enheter
ZP Flat with Rib 25mm Silicon Rubber - - - - - - -
RS-artikelnummer 227-3755
Tillv. art.nrZP06UN
VarumärkeSMC
27,53 kr
Each
Enheter
ZP Flat 6mm NBR - - - - - - -
RS-artikelnummer 227-3979
Tillv. art.nrZP50BS
VarumärkeSMC
149,51 kr
Each
Enheter
ZP Bellows 50mm Silicon Rubber - - - - - - -
RS-artikelnummer 725-333
Tillv. art.nrZPR25CNK10-08-A10
VarumärkeSMC
508,56 kr
Each
Enheter
ZPR Flat with Rib 25mm NBR - Yes Lateral Male Thread M10 x 1 - -
RS-artikelnummer 227-3761
Tillv. art.nrZP08UN
VarumärkeSMC
27,53 kr
Each
Enheter
ZP Flat 8mm NBR - - - - - - -
RS-artikelnummer 827-8781
Tillv. art.nrZP13BS-X19
VarumärkeSMC
82,18 kr
Each
Enheter
ZP Bellows 13mm Silicon Rubber - - - - - - -
RS-artikelnummer 703-6249
Tillv. art.nr1820415037
111,08 kr
Each
Enheter
BSG Bellows 20mm Fluoromethyl Silicone 5.7N - - Male Thread 1/8 in - -
RS-artikelnummer 725-311
Tillv. art.nrZPR10CNK10-06-A10
VarumärkeSMC
529,68 kr
Each
Enheter
ZPR Flat with Rib 10mm NBR - Yes Lateral Male Thread M10 x 1 - -
RS-artikelnummer 703-6223
Tillv. art.nr7320500000
195,59 kr
Each
Enheter
FSR Flat 50mm Chloroprene Rubber 64N - - Female Thread 1/8 in - -
RS-artikelnummer 827-8734
Tillv. art.nrZPT3-B5
VarumärkeSMC
75,85 kr
Each
Enheter
ZPT - 20 → 32mm - - Yes Vertical Female Thread M5 x 0.8 - -
RS-artikelnummer 843-5274
Tillv. art.nrZP3507UN
VarumärkeSMC
29,52 kr
Each
Enheter
ZP Flat 3.5 x 7mm NBR - - - - - 7mm -
