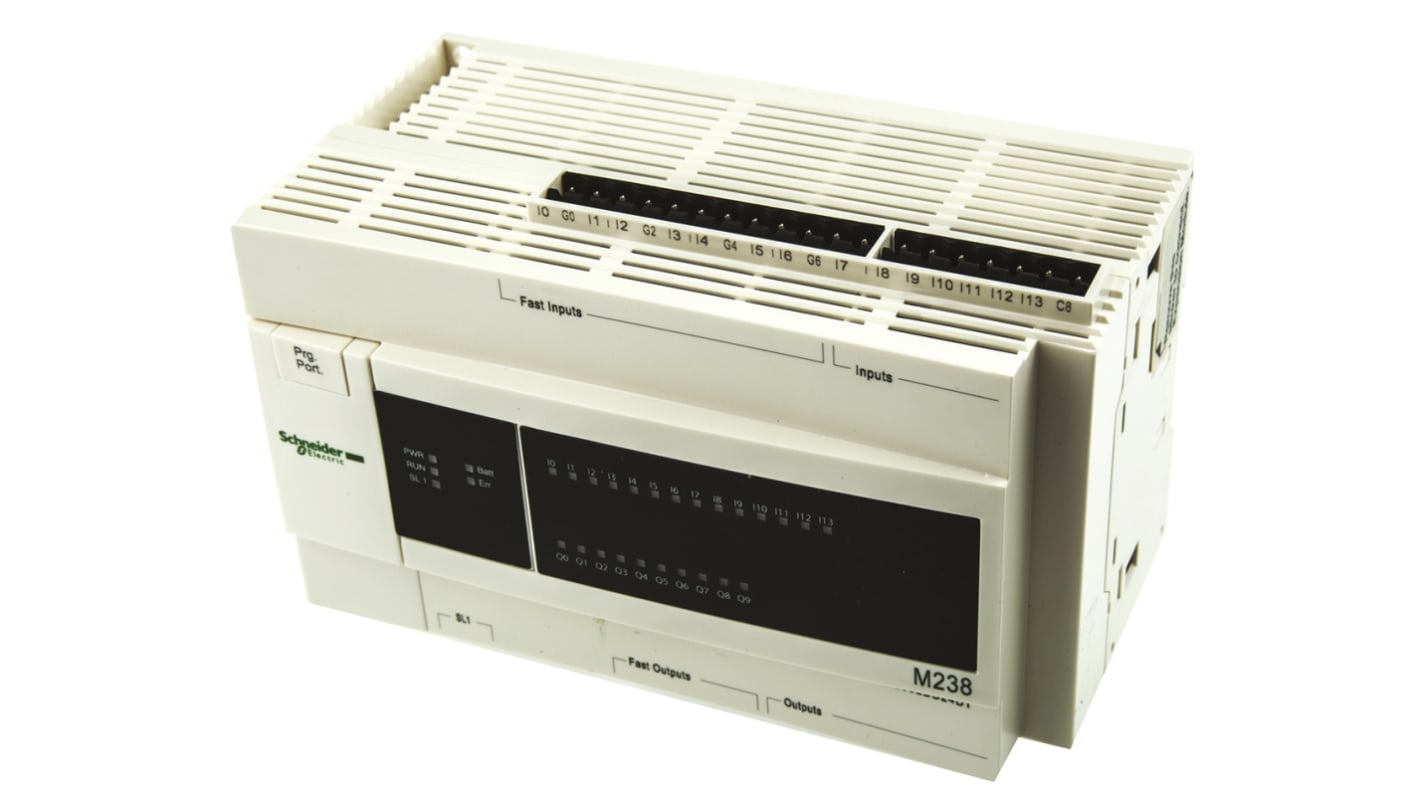

Schneider Electric Modicon M238 Series PLC CPU for Use with Modicon M238, Digital Output, 14-Input, Digital Input
- RS-artikelnummer:
- 770-2346
- Tillv. art.nr:
- TM238LDD24DT
- Tillverkare / varumärke:
- Schneider Electric
Denna produkt har utgått
Alternativ
Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar denna produkt istället.
- RS-artikelnummer:
- 770-2346
- Tillv. art.nr:
- TM238LDD24DT
- Tillverkare / varumärke:
- Schneider Electric
Lagstiftning och ursprungsland
- COO (Country of Origin):
- FR
Produktdetaljer
Modicon M238 - CPU
The Modicon M238 CPU has a variety of powerful features. This CPU can service a wide range of applications.
CPU can manage up to 7 tasks (1 MAST task and up to 6 other tasks)
14 digital inputs, including 8 fast inputs
10 digital outputs, including 4 fast outputs (DC-version) / 6 relay outputs (AC-version)
14 digital inputs, including 8 fast inputs
10 digital outputs, including 4 fast outputs (DC-version) / 6 relay outputs (AC-version)
The Modicon M238 CPU is supported and programmed with the SoMachine Programming Software, which provides the following IEC61131-3 programming languages:
IL: Instruction List
ST: Structured Text
FBD: Function Block Diagram
SFC: Sequential Function Chart
LD: Ladder Diagram
CFC: Continuous Function Chart
ST: Structured Text
FBD: Function Block Diagram
SFC: Sequential Function Chart
LD: Ladder Diagram
CFC: Continuous Function Chart
Schneider Electric Modicon M238
Specifikationer
Attribute | Value |
|---|---|
| Manufacturer Series | Modicon M238 |
| Number of Inputs | 14 |
| Output Type | Digital |
| For Use With | Modicon M238 |
| Input Type | Digital |
| Number of Outputs | 10 (Transistor) |
| Voltage Category | 24 V dc |
| Network Type | ModBus |
| Mounting Type | DIN Rail |
| Programming Language Used | Ladder Logic |
| Number of Communication Ports | 1 |
| Output Current | 500 mA |
| Maximum Operating Temperature | +55°C |
| Programming Interface | Computer |
| Width | 118mm |
| Length | 157mm |
| Display Included | Yes |
| Communication Port Type | RS232, RS485 |
| Dimensions | 157 x 118 x 86 mm |
| Battery Backup | Yes |
| Memory | 1 MB |
| Minimum Operating Temperature | -10°C |
| Depth | 86mm |
